NATIKA Backup/Front View Camera: No Distorted Affect Starlight Night Vision HD Waterproof 720P AHD and TVI Hitch Backup/Reverse/Rear View Camera License Plate for Cars Pickup Trucks SUV RV Van

Overview

• Brand : Natika
• Screen Size : 0.33 Inches

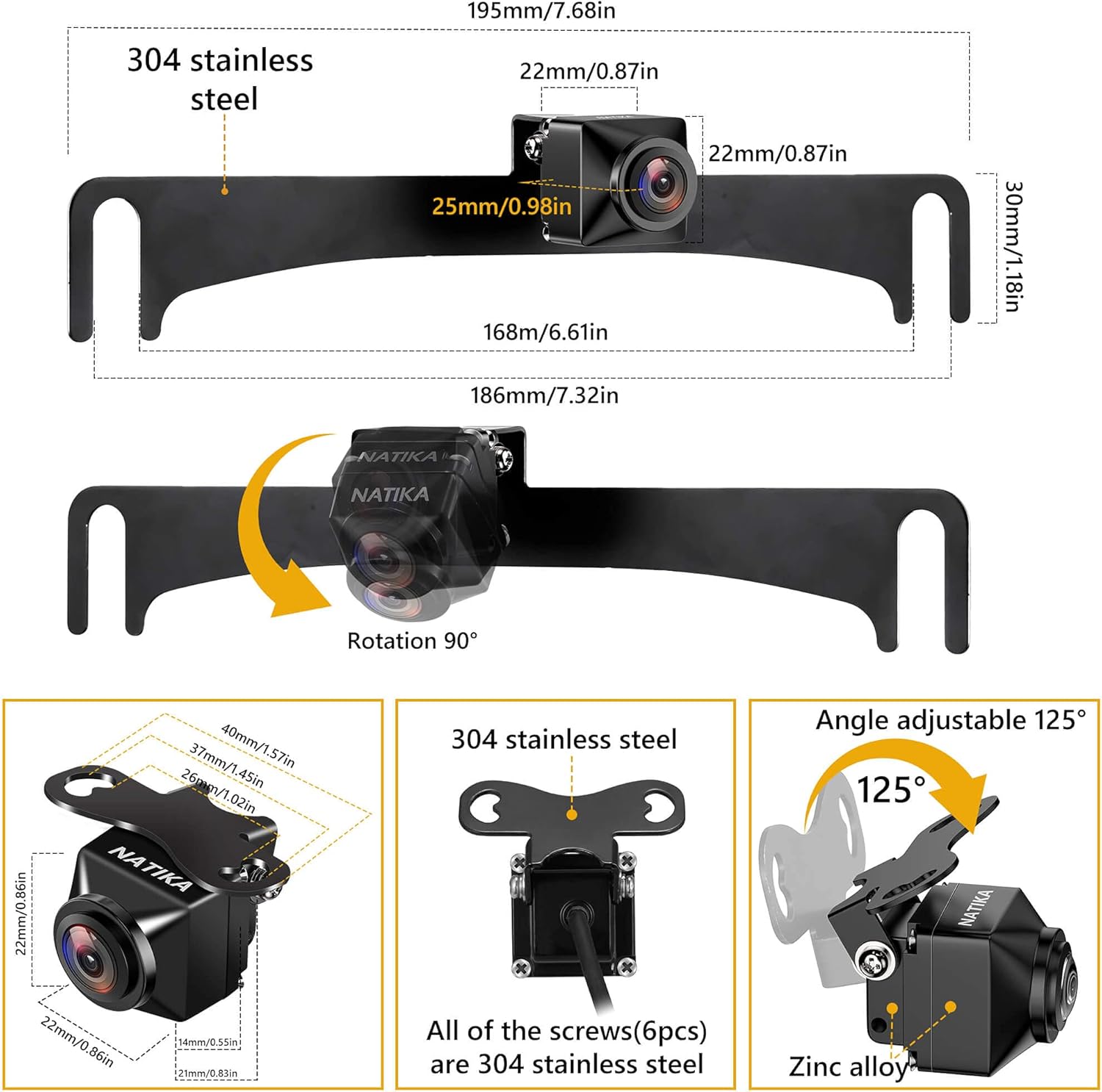

• Product Dimensions : 7.68"L x 1.18"W x 0.98"H
• Lux rating : 0.01 Lux
• Compatible Devices : Pioneer,Kenwood,Sony, Alpine,JVC,Boss,ATOTO,Jensen,Pyle,Podofo and CAMECHO stereos receivers or any head units with a female RCA connector Pioneer,Kenwood,Sony, Alpine,JVC,Boss,ATOTO,Jensen,Pyle,Podofo and CAMECHO stereos receivers or any head units with a female RCA connector
• Display Technology : LCD
• Installation Type : License plate mount or butterfly surface mount
• Video Capture Resolution : 720p
• Voltage : 12 Volts
• Optical Sensor Technology : CMOS

About this item

• Backup camera license plate with a LATEST 6pcs FULL glasses F1.8 large aperture optical system and horizontal 135 degree wide view angle lens, the picture without any distorted effect,you will get a REAL picture when you backing up.Also you can check the invisible blind spot clearly and make parking safe and simple
• Rear view camera license plate adopts a unique enhanced 4 waterproofing processes: PCB-Coating, Sealing adhesive, Filled potting and finally specially-designed waterproof structure to ensure its superb waterproof performance(up to IP69K IP rating). You absolutely no need to worry about water, fog or mist inside. Caution: please separately order a suitable harness to complete installation if connect it to a FACTORY RADIO.

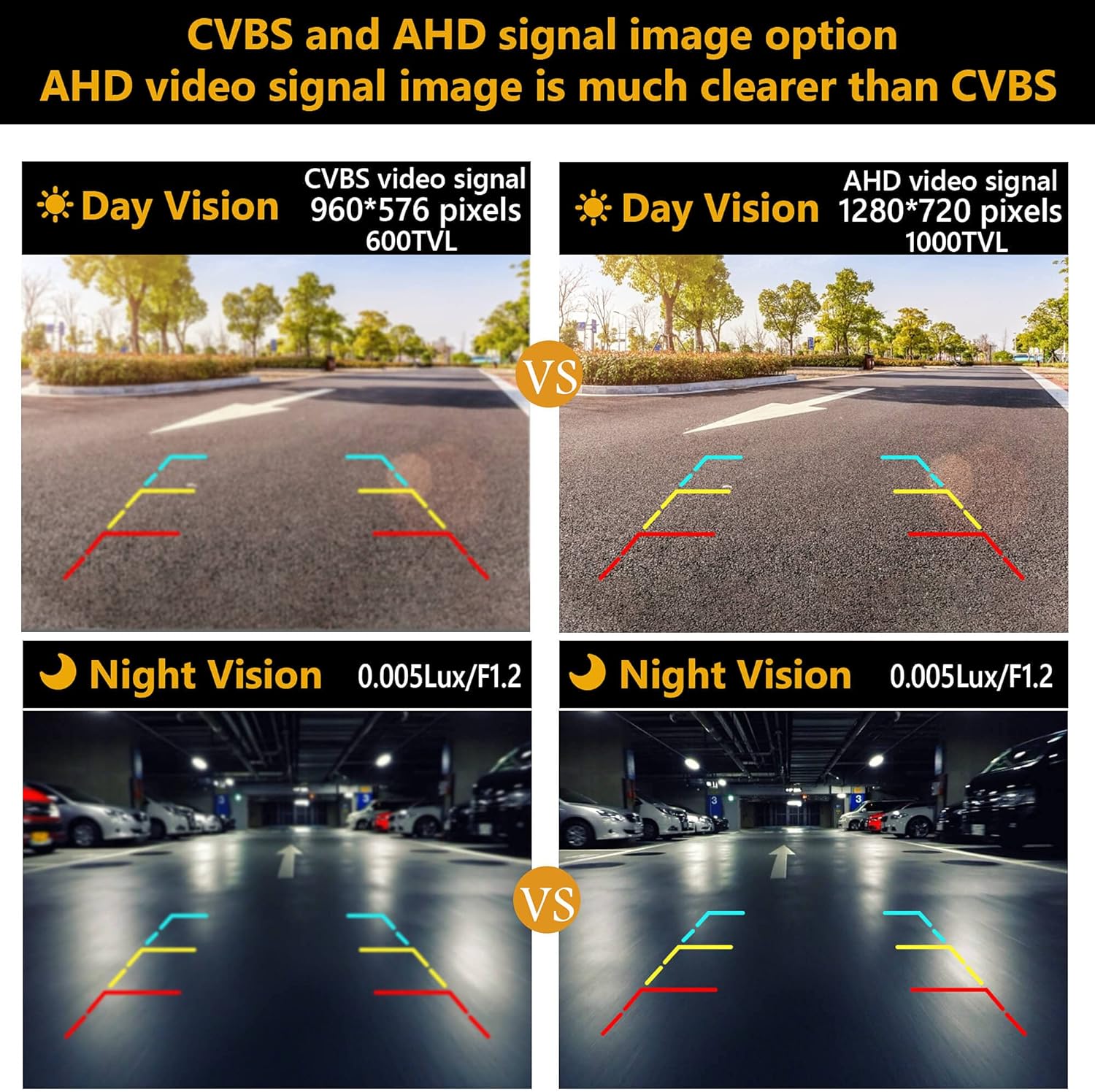

• Reverse camera license plate support 3 kinds: CVBS,AHD and TVI video signal output(great for Android stereos).CVBS by default,cut the purple wire loop to choose AHD format video signal (AHD,720P,30fps) and cut the blue wire loop to choose TVI format video signal (TVI,720P,30fps). It with starlight level night vision (0.005Lux,excellent low-light performance),you never worry about parking during night, rainy day or in dark garage.

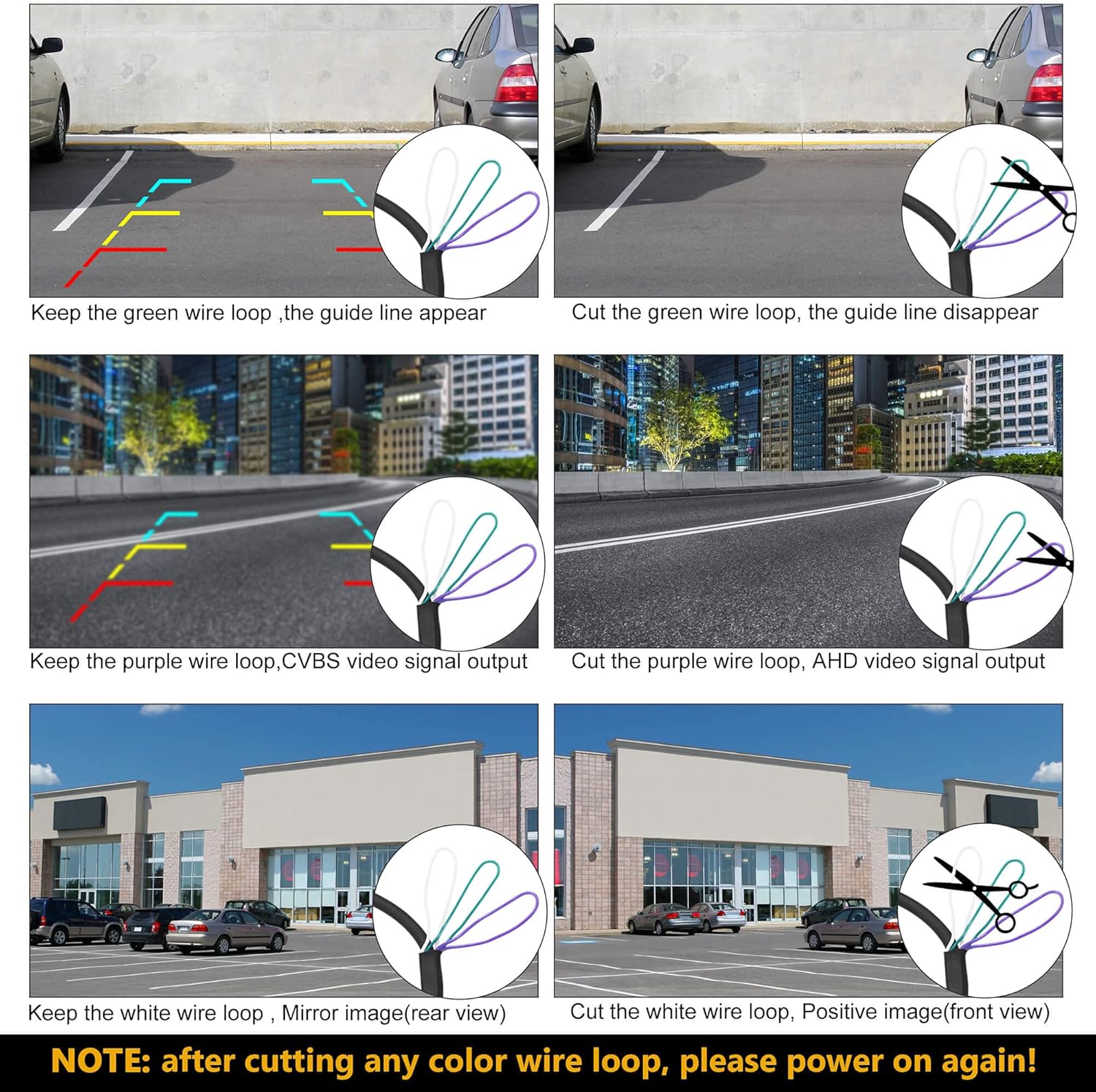

• Hitch reverse camera's housing and brackets are metal and stainless, small size and with 2 in 1 mount option design ( license plate or bracket surface mount ). Also it is built in 4 multifunctional switching wire loops: cut the white loop for front view, cut the green loop to remove the guidelines, cut the purple and blue wire loop to separately choose AHD and TVI format video signal output.
• Cut the purple wire loop to choose AHD format video signal output for selected ATOTO stereos (F7 Series, S8 series and A6 KarLink version,can not work on ATOTO A6Y Series Android stereo or SA102 Starter). And cut the blue wire loop to display the HD image in TRUE 720P HD on compatible Kenwood DNR1007XR, DNR1008RVS, DMX1057XR, DMX1037S, DNX997XR, DDX9907XR, and DMX958XR receivers stereos.
• Caution: According to our experience, some cheap or old Android stereos(before 2020) have the setting of AHD or TVI video signal input option, but the truth it does not work, because their hardware inside do not support it. If so, please use the default CVBS video signal output (do not cut the purple or blue wire loop, otherwise you will get a black and white screen).
• This backup car camera license plate doesn't fit sucked type dash cam, mirror dash cam and cheap carplay device, because these devices with different connectors (without RCA female connentor) or inside PIN definition, even some of them with same size 4 PIN connector. If connect this hitch flush mount backup car camera to a GPS navigator, please separately order one more adapter which with a RCA to 2.5mm connector to complete installation.
• Customer satisfaction is our top priority! NATIKA offer 24 months replacement warranty,lifetime support guarantee and 7 days-24 hours professional customer service and technical support.
