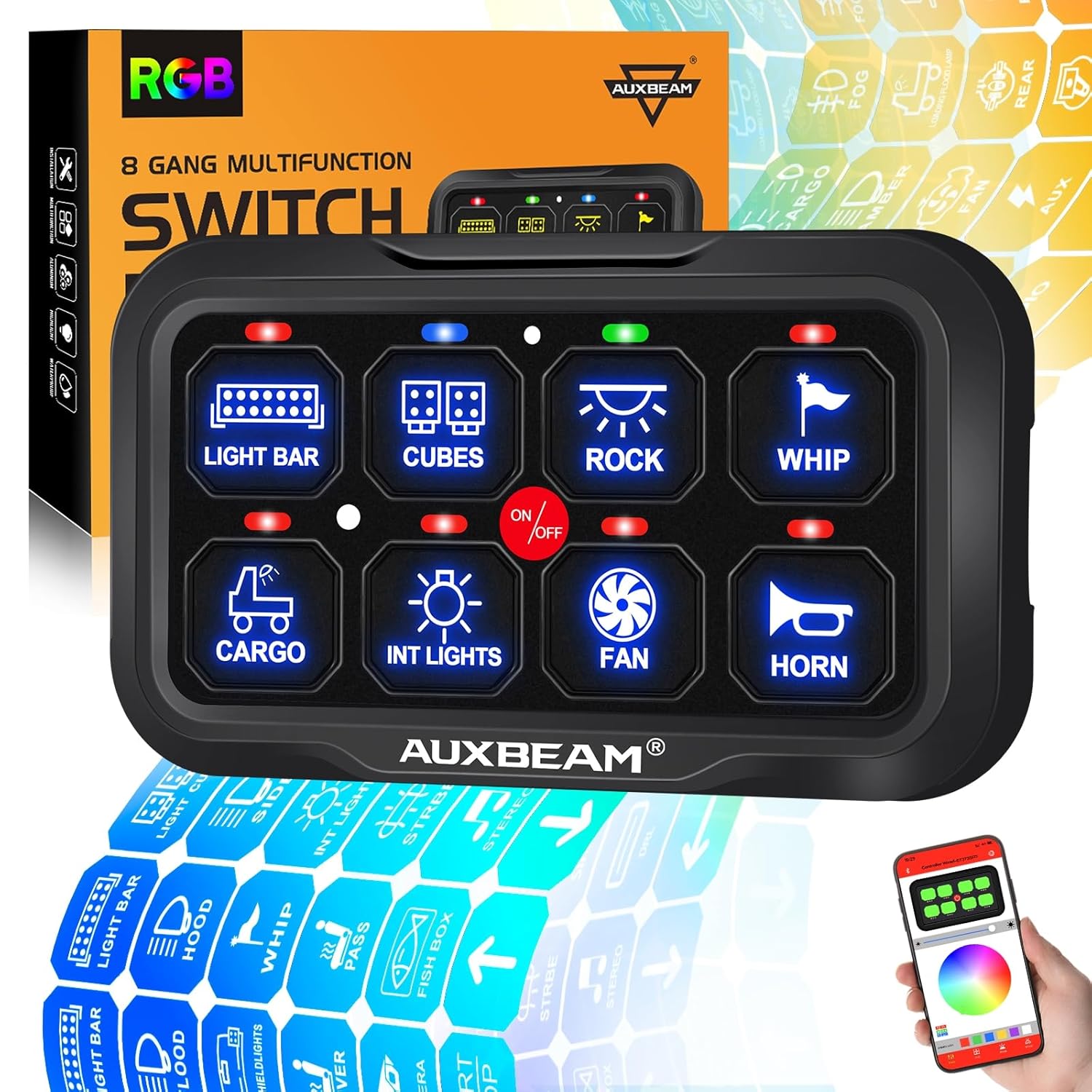

Auxbeam 8 Gang Switch Panel AR-820 Bluetooth RGB Switch Pod Automatic Dimmable Multifunction Switch w/Toggle Momentary Pulsed Control Panel for UTV ATV Truck Car RV Boat Waterproof 2 Years Warranty
Auxbeam 8 Gang Switch Panel AR-820 Bluetooth RGB Switch Pod Automatic Dimmable Multifunction Switch w/Toggle Momentary Pulsed Control Panel for UTV ATV Truck Car RV Boat Waterproof 2 Years Warranty
Couldn't load pickup availability
Overview
- Operation Mode : ON-OFF
- Current Rating : 60 Amps
- Operating Voltage : 24 Volts
- Contact Type : Normally Open
- Connector Type : Plug In
- Brand : Auxbeam
- Terminal : Solder
- Item dimensions L x W x H : 4.6 x 2.6 x 1 inches
- Circuit Type : 8-way
- Actuator Type : Touch
- Switch Type Push Button : Material Aluminum
- : Switch Type Push Button
- : Material Aluminum
- Mounting Type Panel Mount : Specification Met CCC
- : Mounting Type Panel Mount
- : Specification Met CCC
About this item
- RGB Backlight with Auto-Dimming: The Auxbeam 8 gang switch panel automatically adjusts the backlight brightness based on the ambient light, ensuring comfort in any lighting condition. Moreover, the RGB backlight design allows you to personalize your driving experience with a wide range of colors.
- 3 Lighting Modes: This 8 gang switch panel offers 3 lighting modes: TOGGLE (device always on), MOMENTARY (press and hold to activate), and PULSED (strobe). It is a simple and quick process, taking only a few seconds. You can easily switch LED lights to strobe, steady on, or use it as a momentary switch for a horn. Feel free to choose the mode that suits your vehicle's needs and device functionality.

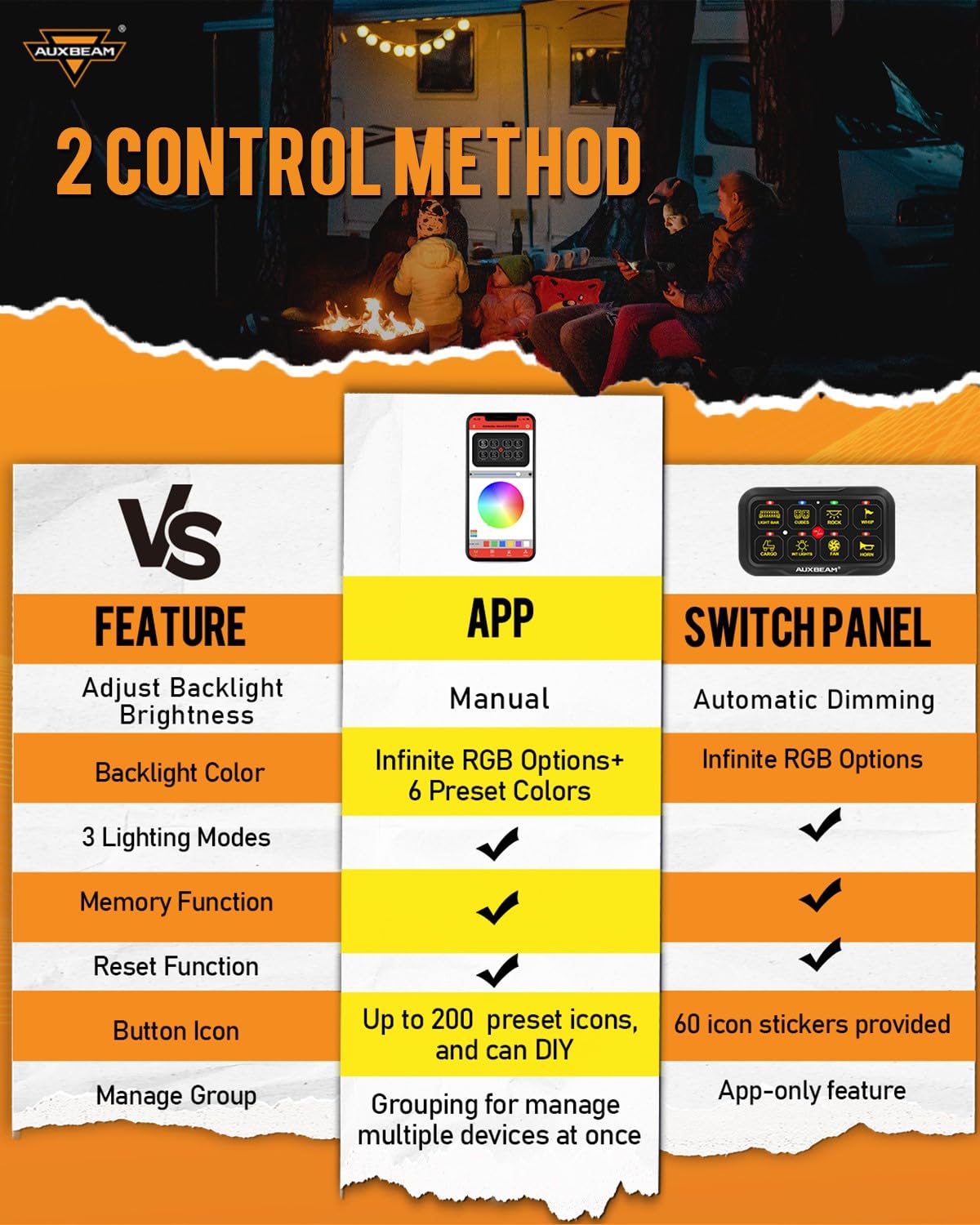

- Bluetooth APP Control: Take full control of your switch panel with our Bluetooth APP. Adjust backlight color, brightness, and switch between 3 lighting modes effortlessly. Customize device icons and more. Enjoy panel-like convenience at your fingertips. Plus, easily group devices for simultaneous control.
- Clean & Clutter-Free Wiring: The Auxbeam 8 gang switch panel is easy to install and controls up to 8 devices simultaneously. It helps manage cables, reducing clutter and crossovers. The control box features a 2-side outlet design, ideal for vehicles with complex interiors. Enjoy a neat and organized wiring system with this panel.

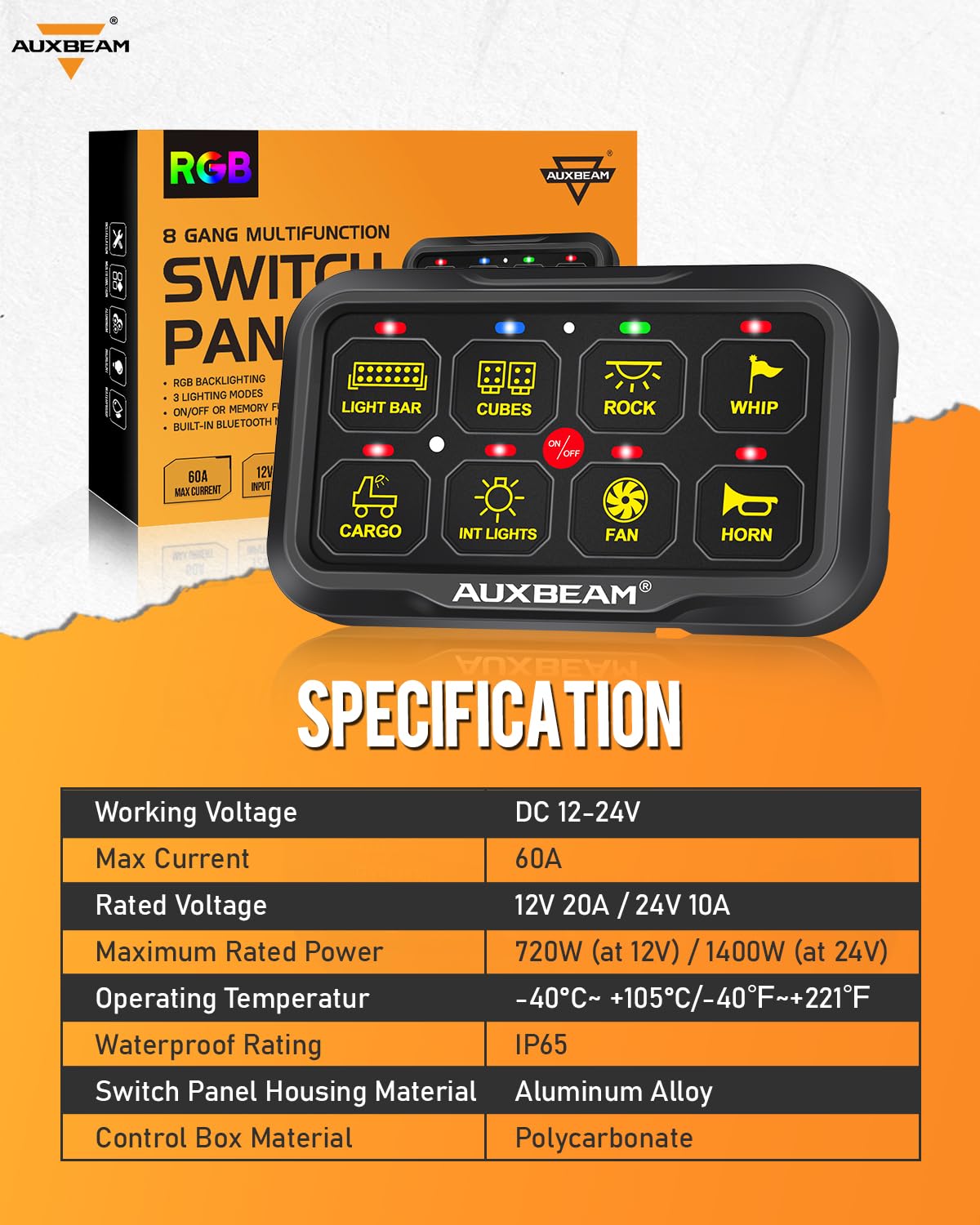

- Reliable Safety: Working voltage: DC 12-24V, Rated voltage: 12V 20A/24V 10A, Maximum current: 60A. Maximum rated power: 720W (at 12V)/1400W (at 24V). Temperature range: -40℃~+105℃/-40℉~+221℉. This auxiliary switch panel kit includes built-in solid-state relays and a 60A circuit breaker, providing protection against reverse polarity, overcurrent, overvoltage, and overheat. It is also equipped with a silicone protective cover to safeguard the switch panel from water damage.
- Applicable & Warranty: This multifunctional marine switch panel is suitable for various vehicles, including cars, trucks, off-roads, ATVs, UTVs, boats, SUVs, pickups, and RVs, etc. The 2-year warranty for this product is provided by Auxbeam, ensuring reliable and high-quality service. Our customer support team is available 24/7 to assist you with any concerns or issues you may encounter.
