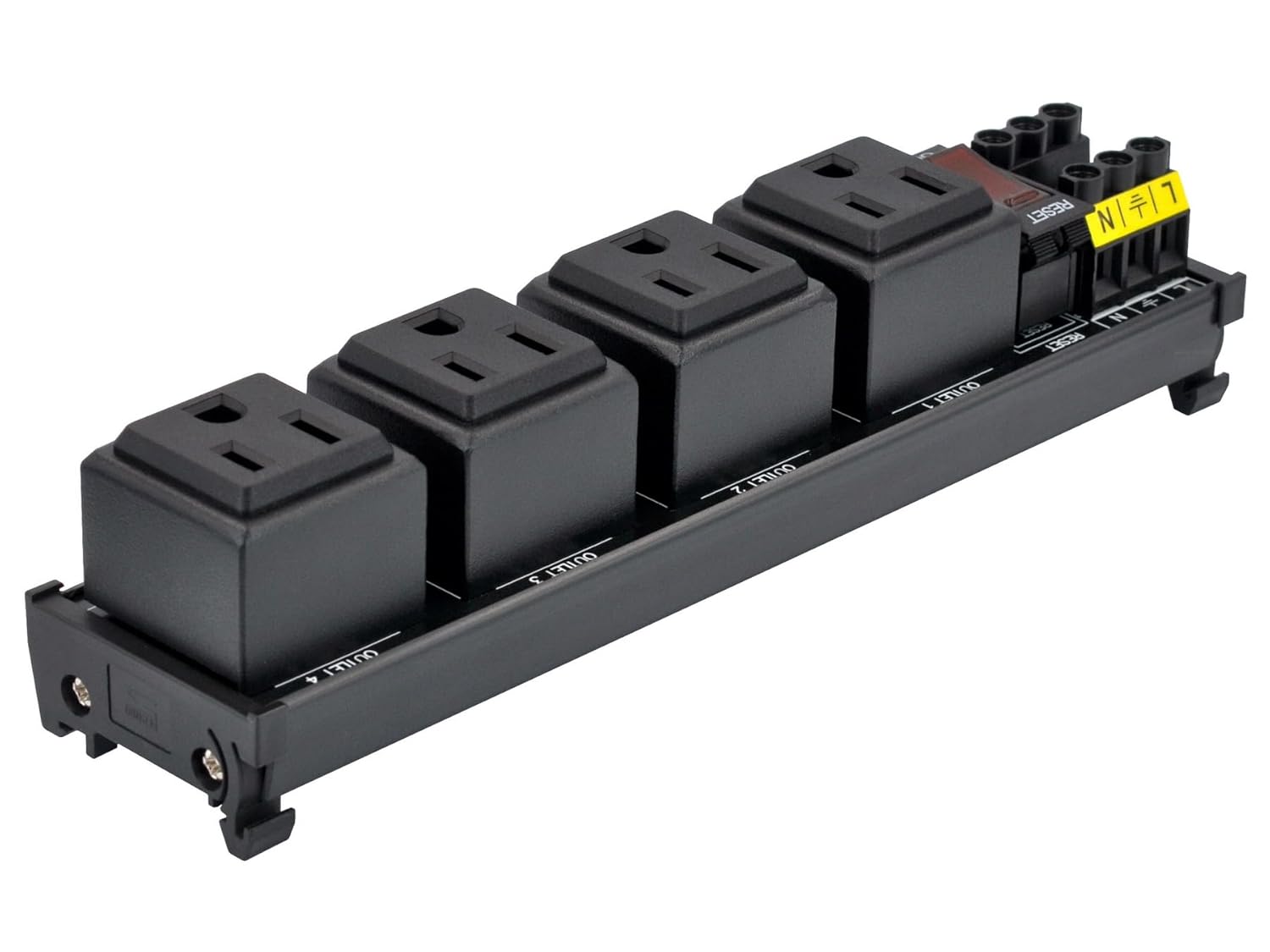

DIN Rail Mount AC 120V NEMA 5-15R 4 Receptacles Outlet Power Strip Module, with Rocker Switch Thermal Circuit Breaker Overload Protector

Overview

• Brand : OONO
• Total Power Outlets : 4
• Voltage : 120 Volts
• Shape : Rectangle
• AC Adapter Current : 3E+1 Amps

About this item

• Outlet: four 3-prong grounded NEMA 5-15R AC receptacles. Reinforced AC receptacle to ensure stability.
• Working voltage AC 120V. Single receptacle rated current 15 Amps. Total receptacles output rated current 15 Amps (limited by overload protector rated current).
• Resettable rocker switch thermal circuit breaker overload protector current 15 Amps, built-in red indicator, support manually control output ON / OFF.
• Input terminals pitch 7.62mm/0.3", maximum current 30 Amps for per position, wire size 26~10 AWG, stripping length 8mm, Metric M3 slotted screw. Support power supply expansion connect to other modules.

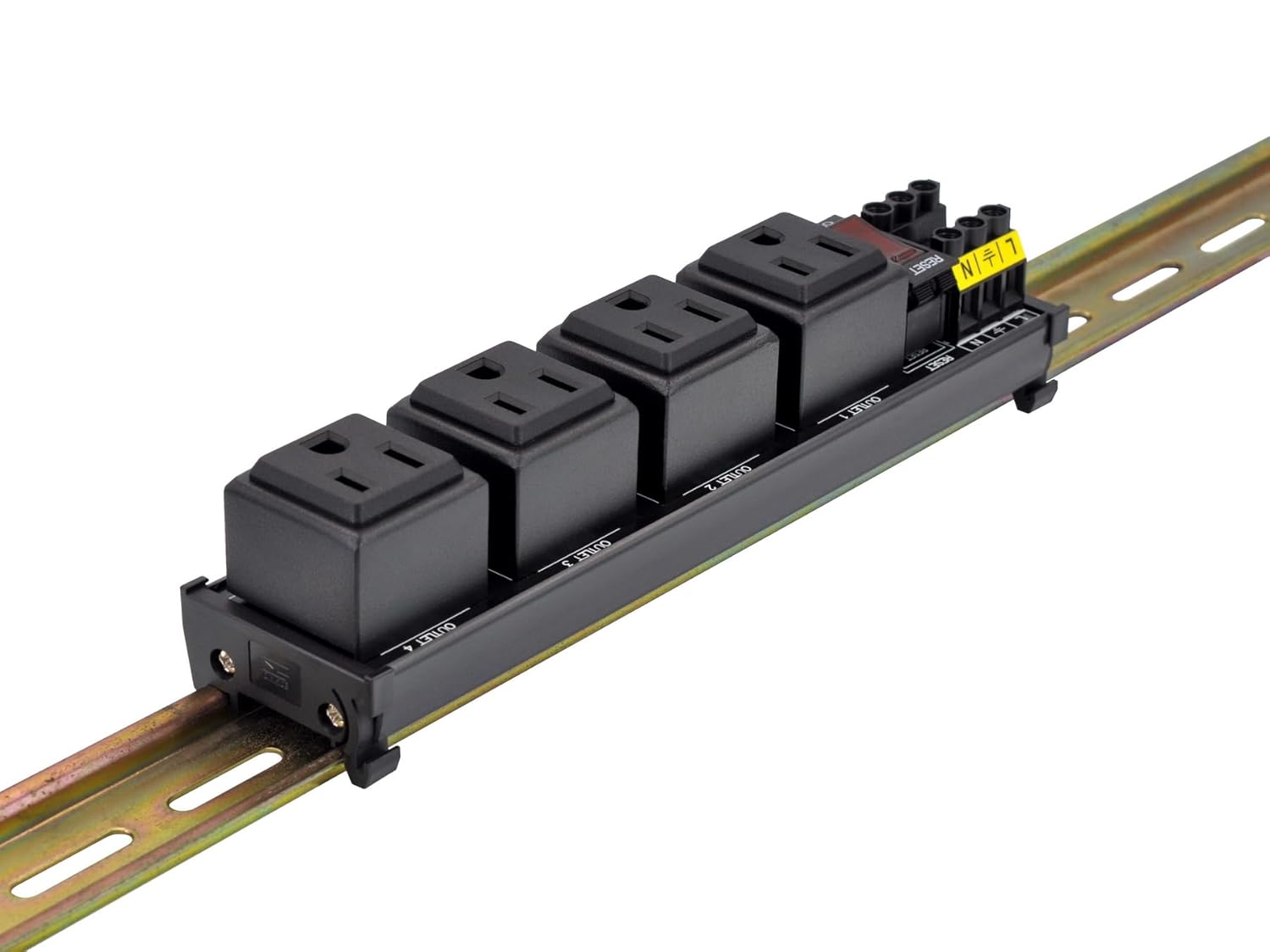

• DIN rail mount carrier can support width 35mm rail. High quality fireproof nylon material.
• UL CE certified DIN rail nylon material mount carrier. UL 94-V0 certified FR-4 fiberglass material PCB. UL CE CQC certified terminal blocks. UL certified NEMA 5-15R receptacle. UL certified circuit breaker.
